Paneled Doors

Product details

1-3/8” PANELED DOORS

AVAILABLE WOOD SPECIES

Our Paneled Doors are custom built with the highest quality woods available. All of our exterior and interior woods are clear, and without finger joints.

Exterior Wood Species

Western Red Cedar, Spanish Cedar, Cypress, and Sapele Mahogany.

Interior Wood Species

Basswood, Sapele Mahogany, Cypress, Red Oak, Pine, Soft Maple.

* Additional Wood species available upon request. Quantity limits may apply. *

FINISHING OPTIONS

*Additional charges apply.

OPTION 1:

Spray Primed*

Sprayed with top quality oil-based primer; light sanding recommended.

OPTION 2:

Primed and Sanded*

Sprayed with top quality oil-based primer, sanded and joints sealed; ready for finishing.

OPTION 3:

Primed and Finished*; Ready for Installation

Each shutter is sanded, primed with two coats of oil-based primer and sanded again. Then the primed shutters are finished with a premium exterior paint. Custom color charge may be applied to orders less than 60 square feet.

* Color finishes by Sherwin Williams, Benjamin Moore, and PPG may be matched by supplying the manufacturer's brand name, color number and color name. Anything else can be matched by swatch.

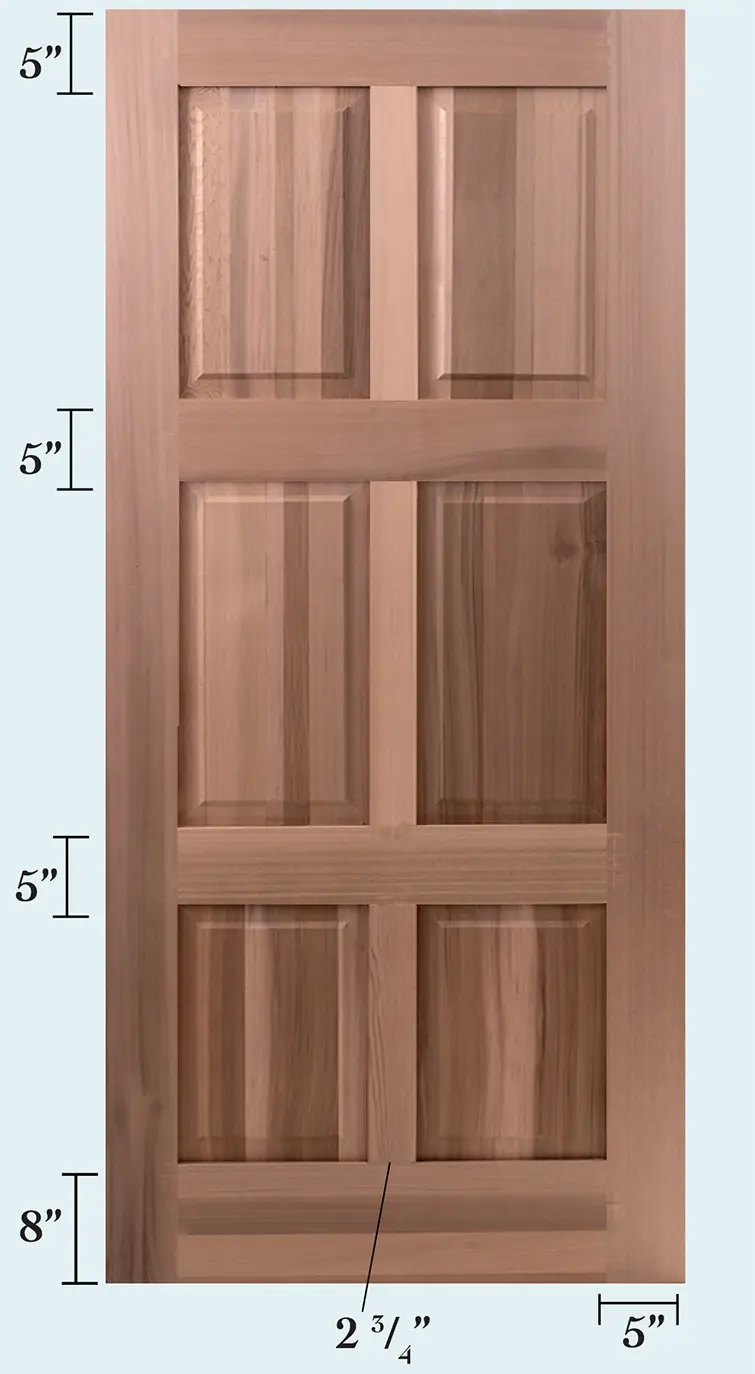

1-3/8” Flush Stile & Rail Frame Construction

Mortise & Tenon Construction

SPECIFICATIONS

Side Stiles

5" x 1-3/8"

Top Rail

5" x 1-3/8"

Bottom Rail

8" x 1-3/8"

Vertical SubStile

2-3/4" x 1-3/8"

Center Rail

5" x 1-3/8"

Available Thickness Options

1-3/8", 1-5/8", 1-3/4"

Single-sided Raised Panel Thickness

5/8"

Single-sided Flat Panel Thickness

5/8"

Double-sided Raised Panel Thickness

3/4"

Double-sided Flat Panel Thickness

1/2"

V-Groove Width

1/2"

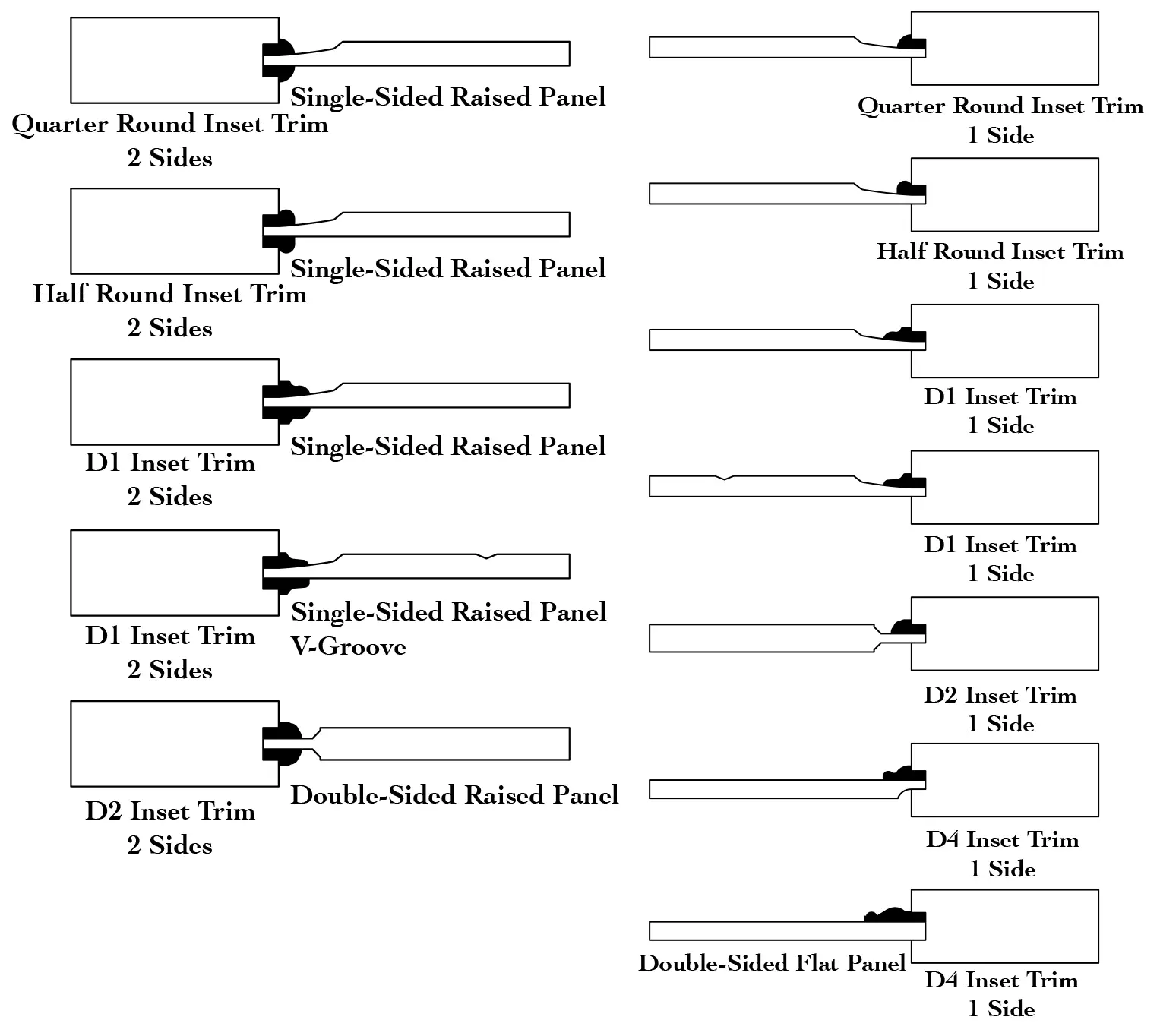

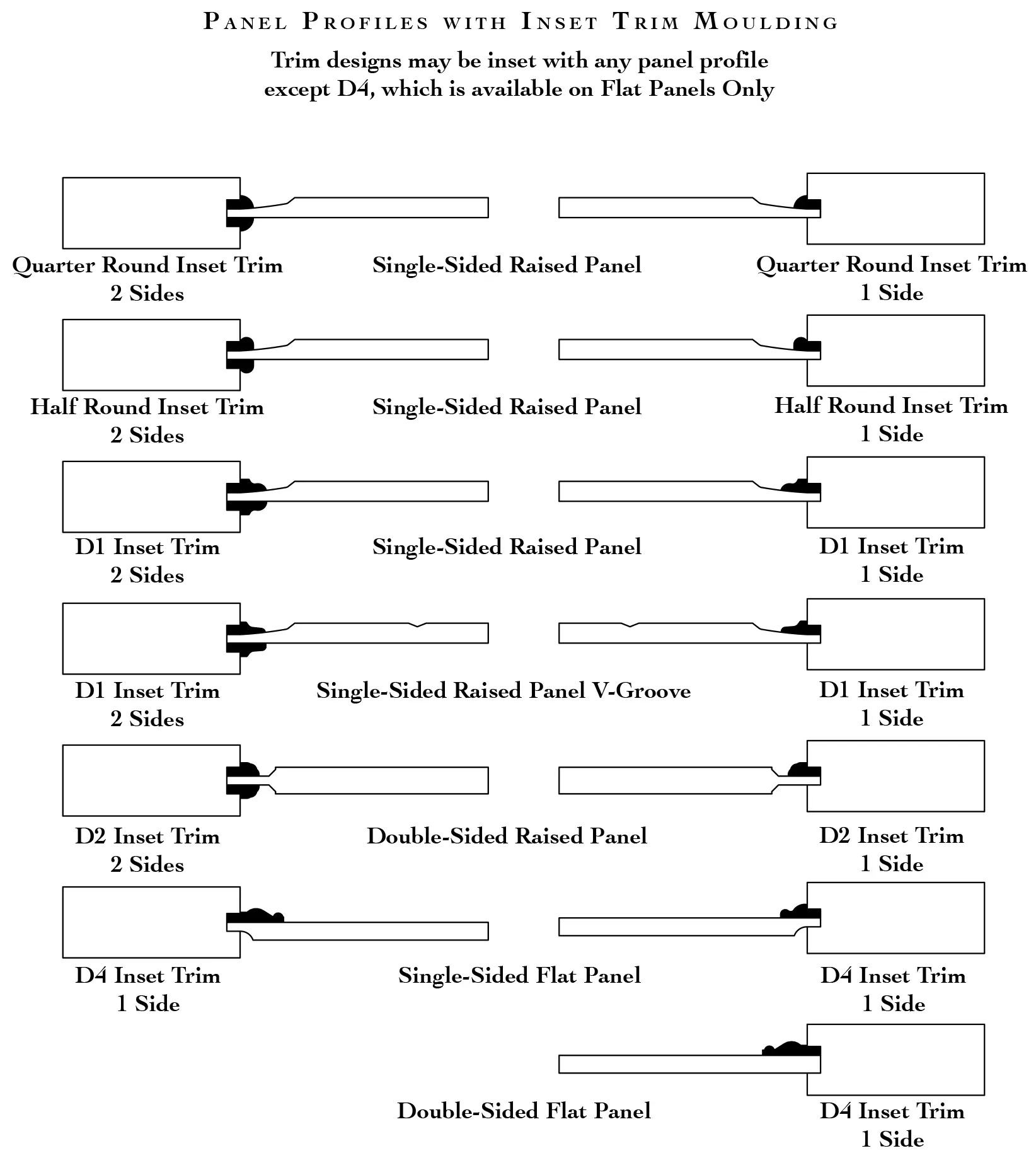

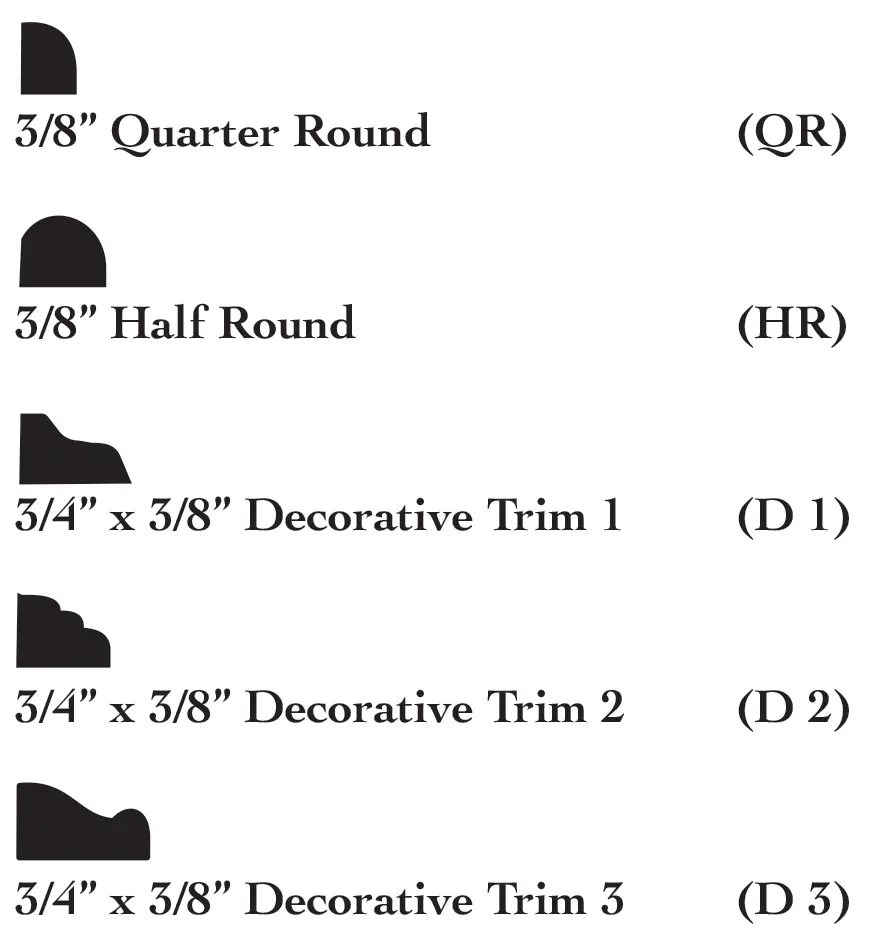

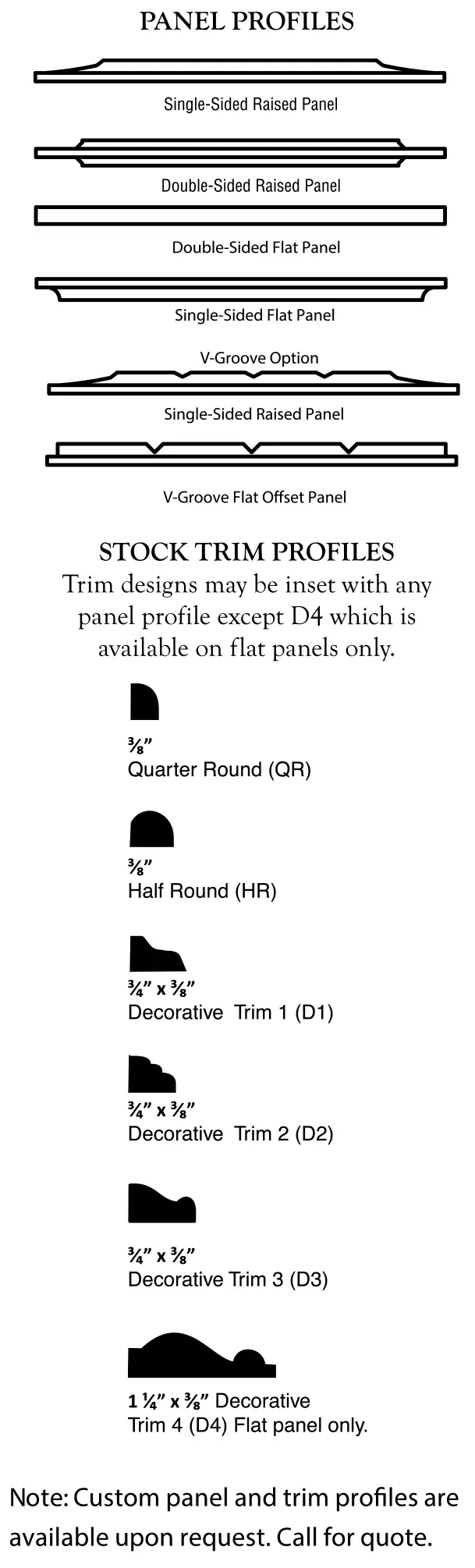

DESIGNLINE DOOR PANEL OPTIONS Panel Profiles and Decorative Trim Options

*Additional charges may apply

Custom Door Options

Exterior Paneled Doors manufactured by Southern Shutter can be customized to meet most customers specifications.
For additional options call 1-800-344-8590 or visit our website www.southernshutter.com.
