Interior Movable Louver Combination

Product details

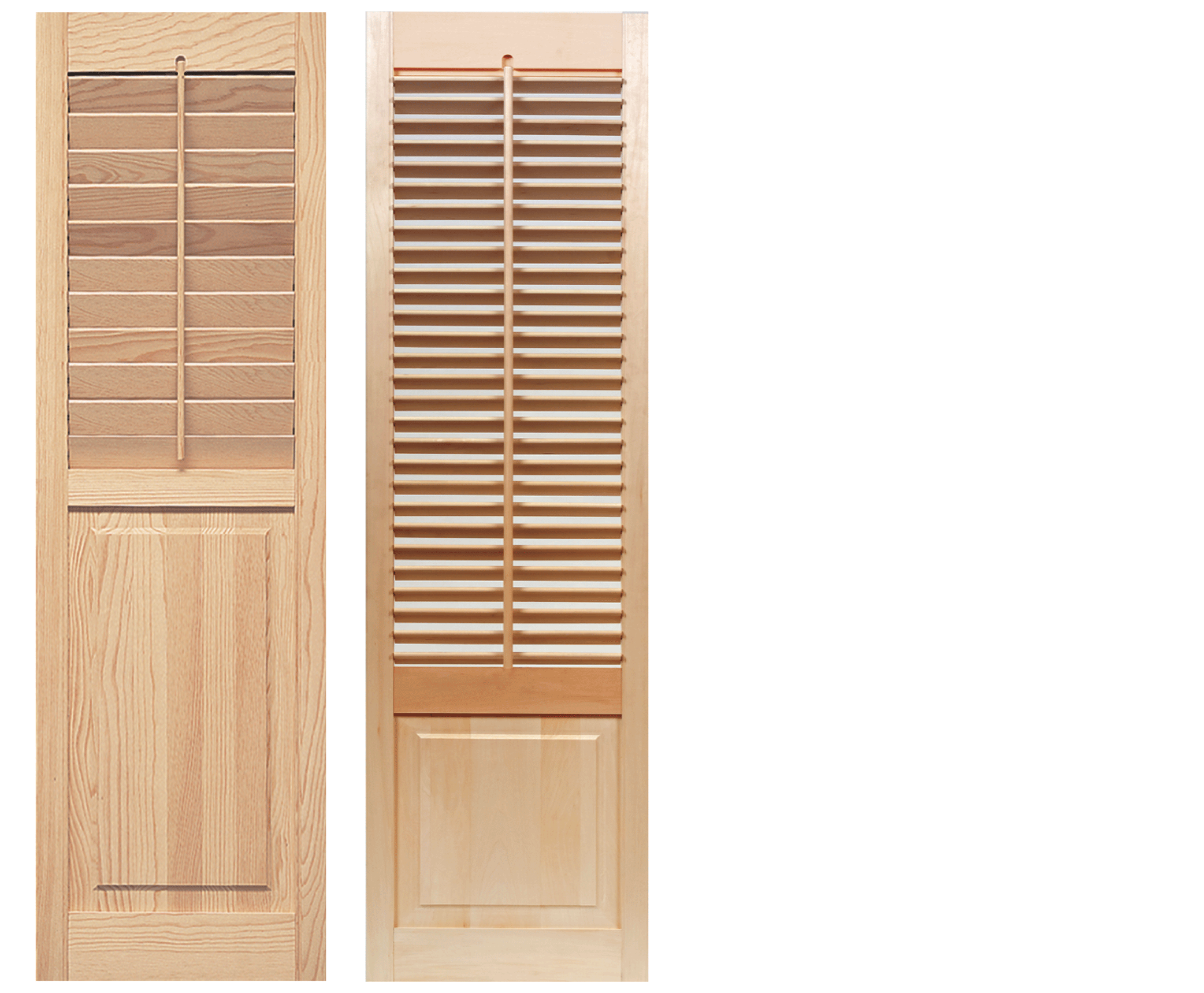

1-1/16” Movable Louver Combination

PLANTATION RECESSED STILE & RAIL MOVABLE LOUVER COMBINATION SHUTTERS

WOOD SPECIES

Our standard interior wood species for Plantation Louvered Shutters is Basswood or pre-primed Poplar. Other Species offered include Red Oak, Cypress, Mahogany and Yellow Pine.

FINISHING OPTIONS

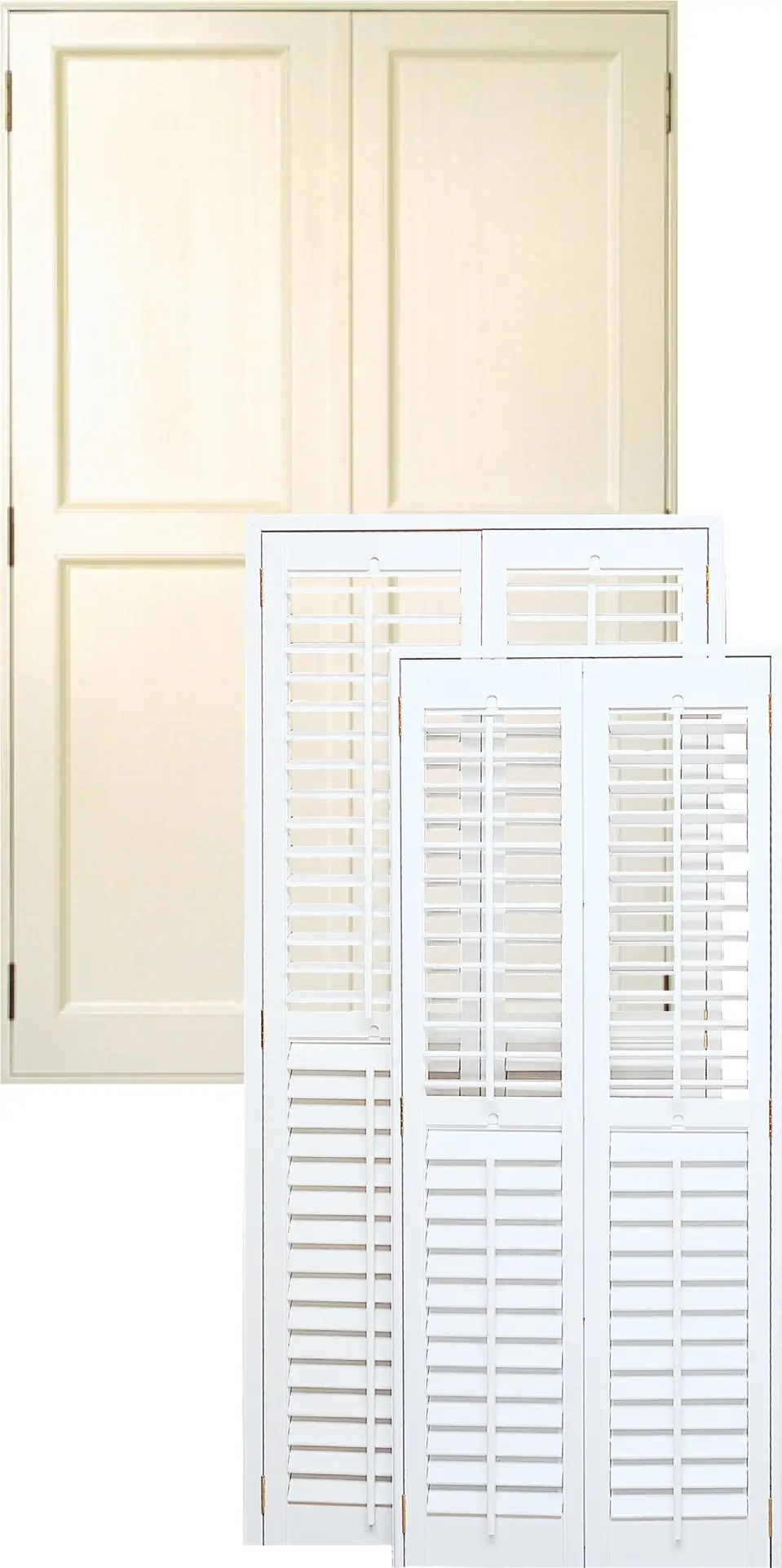

OPTION 1: Shutter Panels Only

Interior primed white (default)
Interior primed and prepped white
Interior primed and finished. Ready for installation
Unfinished stain grade
Interior Stained. Ready for installation

OPTION 2: Framed Shutter Units

Interior primed and prepped ready for paint
Interior painted ready for installation
Interior stain grade unfinished
Interior stained ready for installation

*Additional charges apply.

*All color finishes may be matched to Sherwin Williams, Benjamin Moore, and PPG by supplying the manufacturer’s color name and color number code.

HANGING SYSTEMS

Southern Shutter offers a variety of hanging systems including L-Frame, Z-Frame, hanging strips, and direct to casing mount (see Interior Installation Page). Track systems are also available on request. Hanging systems are shipped disassembled and packaged with our quality hardware for easy installation.

SHUTTER LAYOUT

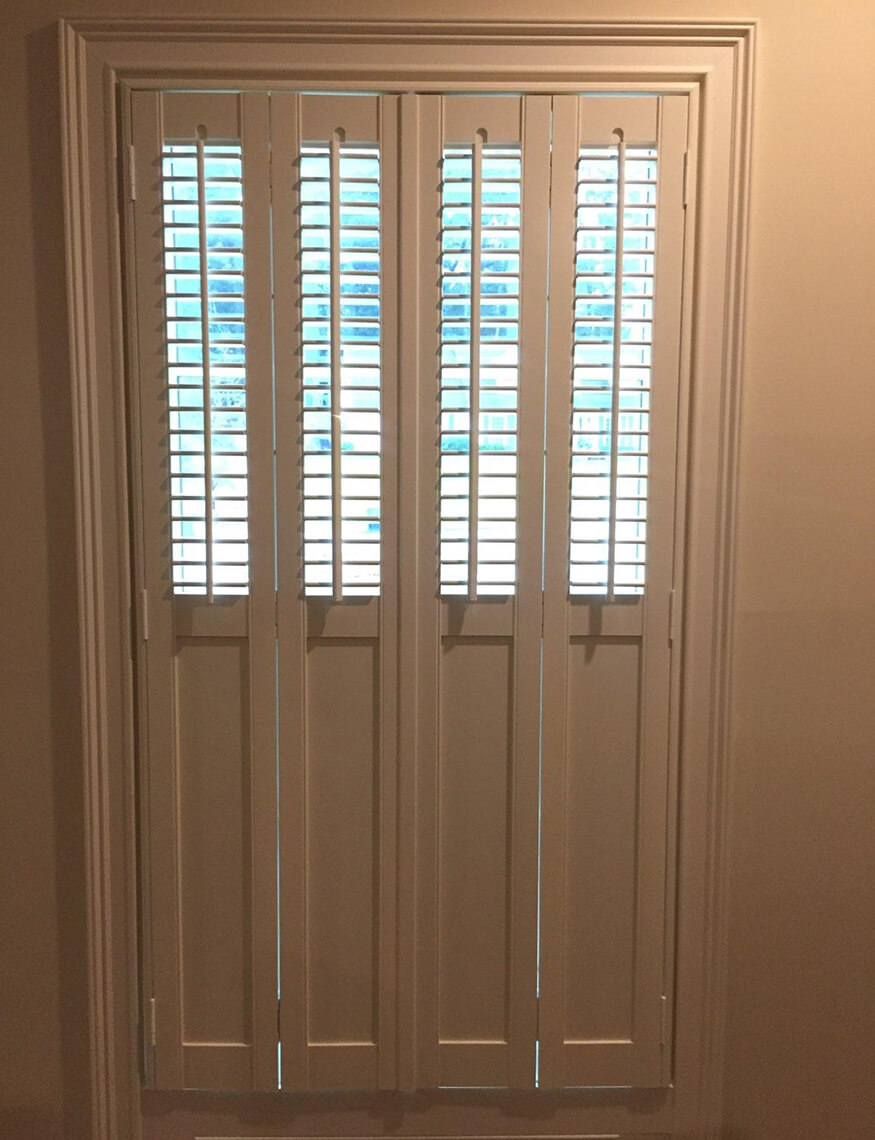

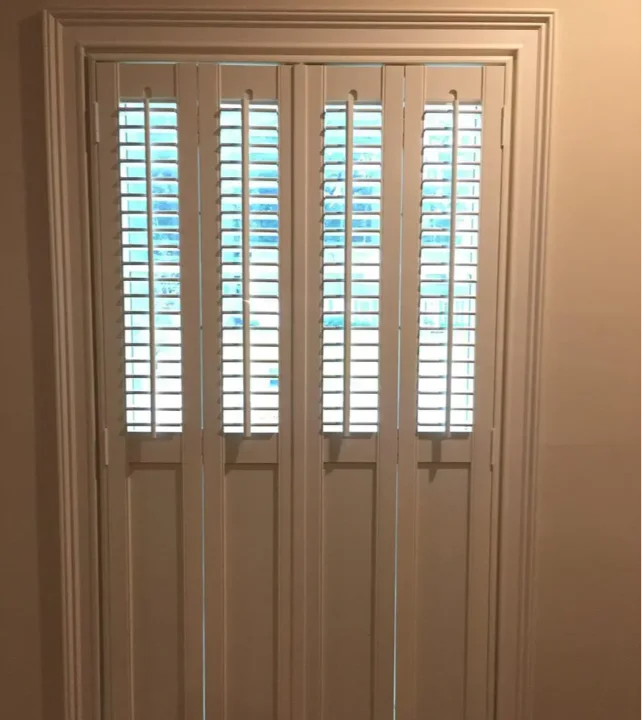

For maximum visibility, interior louver shutters may be installed as a single shutter. For a more traditional configuration shutters may be installed in pairs or bi-folded.

RADIUS & CUSTOM DETAIL

Interior shutters offer many practical and decorative options which can be created from most of the interior shutter styles. From café doors, to sunburst radials to other speciality trim carvings, Southern Shutter Company can build custom shutters to your specifications.

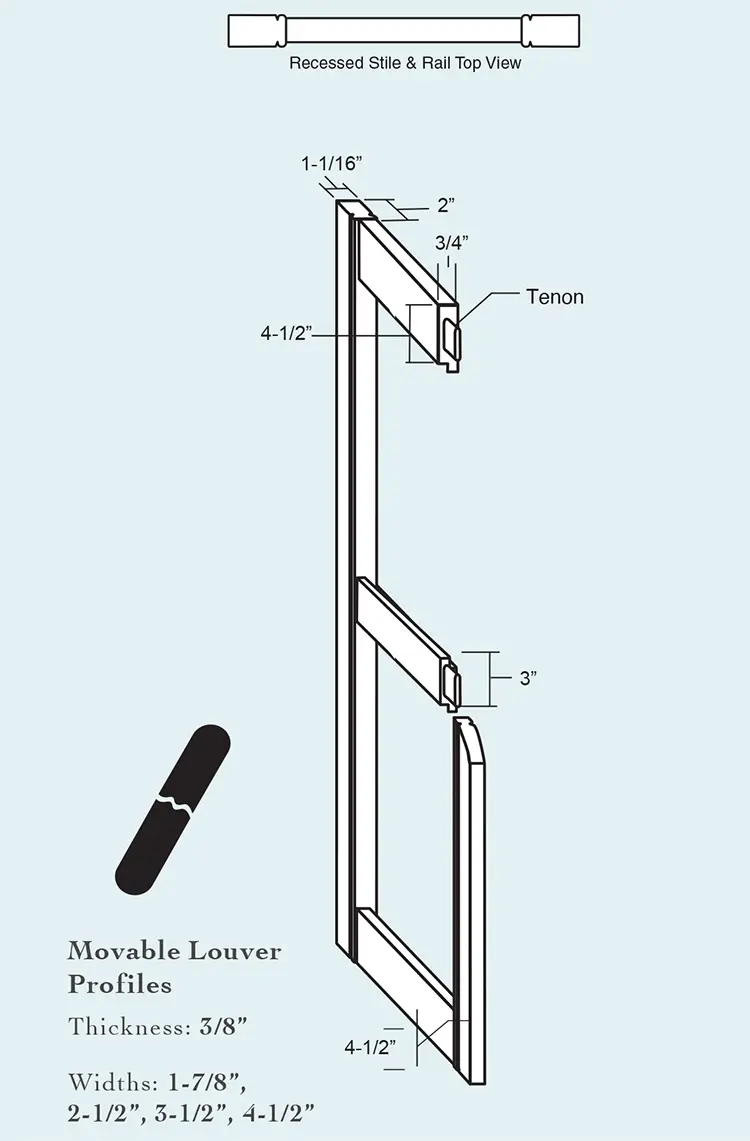

1-1/8” Recessed Stile & Rail Frame Construction

Note: Be sure to allow for louver clearance when measuring and mounting shutters.

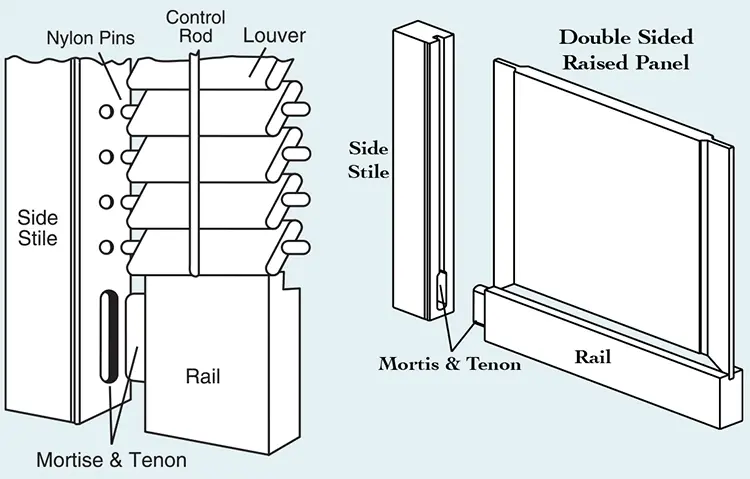

Mortise & Tenon Construction

Interior 1-1/16” Movable Louver Combination Shutters

SPECIFICATIONS

Side Stiles

2” x 1-1/16”

Top Rail

4-1/2” x 3/4”

Center Rail

3” x 3/4”

Bottom Rail

4-1/2” x 3/4”

Louver Thickness

3/8”

Custom Shutter Options

Interior 1-1/8” Movable Louver Combination Shutters manufactured by Southern Shutter can be customized to meet most customers specifications. For additional options call 1-800-344-8590 or visit our website www.southernshutter.com.

*Additional charges may apply

Additional Wood Species (Available by quote)
Primed and Sanded
Custom Paint Color (No additional charges on orders larger than 60 square feet)
Ship Lap - 1/4”, 3/8”
Ship Lap with 3/8” Bead - 1/4”, 3/8”
3 Section Rail Layout
4 Section Rail Layout

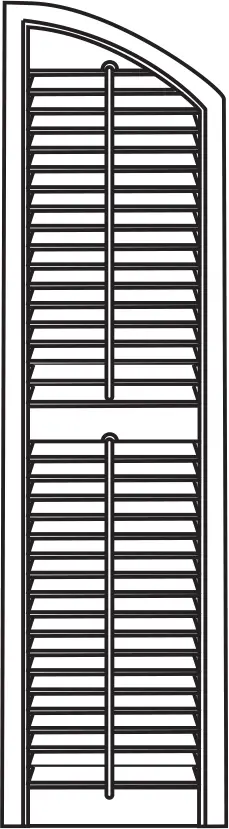

Basic Arch Top or Rake Cut
Solid Rail Arch or Café Scroll Arch
Half Circle Arch Top
Lever Handle Cutout (Framed Units)
Rail Width Modification
Stile Width Modification
Split Shutters in Center
Mortise shutters for hinges
Track with or without frame (includes valance)
Frame and Hanging Strip Stock (see Interior Hardware Options)
Louver/Panel Combination (see Interior Panel Options)

Quality Shutters Deserve a Quality Finish!

Finishing Options

Southern Shutter takes the guesswork out of shutter installation. Interior shutters may be ordered unfinished or factory-finished in varying stages of completion.

1. READY TO INSTALL:

Painted or Stained with Selected Hanging System; Ready for Installation.

Shutters are completely sanded, primed and finished in your choice of color or stain. All color finishes may be matched to Sherwin Williams, Benjamin Moore, or PPG by suppling the manufacturer’s color name and color number code. Shutters are then pre-fit in a complete hanging system, finished and ready-to-install.* See following page and ordering instructions for more details to select the best hanging system for your specific installation.

Finished shutters with hanging systems are priced per square foot, including shutters and finishing. For your specific shutter selection for square footage pricing, call for a quote.

*Hanging systems are disassembled for shipping.

2. SHUTTER PANELS ONLY:

Panels and Hardware ordered separately.

Shutter Panels are priced per pair. Finished shutters are priced by the square foot. Call for a quote.

Mounting Hardware

Southern Shutter offers an extensive selection of interior hardware, including: Non-Mortise Hinges, Magnetic Catches and Café Door Kits.

NON-MORTISE HINGE FINISHES

Wrap-Around or Butt Hinges available in polished brass, antique brass, brushed nickel, chrome, oiled rubbed bronze, and white finishes.

1. NON-MORTISE WRAP AROUND HINGE

Used to mount shutters to a hanging strip installed behind the side stile of the shutter. Choice of finish. Sold in pairs.

2. NON-MORTISE WRAP AROUND HINGE SETS

Used to mount shutters to a hanging strip installed behind the side stile of the shutter. Choice of finish. Complete mounting kit including 4 hinges and magnetic catch.

3. NON-MORTISE BUTT HINGE

Used to attach shutters to a frame or window jamb. Choice of finish. Sold in pairs.

4. NON-MORTISE BUTT HINGE SETS

Used to attach shutters to a frame or window jamb. Choice of finish. Complete mounting kit including 4 hinges and magnetic catch.

5. MAGENTIC CATCHES

Brown or White.

6. CAFÉ DOOR KITS

Polished brass gravity-action hinged return door to center or hold doors open.

*Recommended hinges per pair: Shutter height 12”-48”, 4 hinges • Shutter height 48”-96”, 6 hinges • Shutter height 97”-120”, 8 hinges.

1. Non-Mortise Wrap Around Hinge (2 hinges & screws only)

Item No.

Description

Set

WH-102-AB

Hinge / Antique Brass

Set of 2

WH-102-BN

Hinge / Brushed Nickel

Set of 2

WH-102-CH

Hinge / Chrome

Set of 2

WH-102-OB

Hinge / Oil Rubbed Bronze

Set of 2

WH-102-PB

Hinge / Polished Brass

Set of 2

WH-102-WH

Hinge / White

Set of 2

2. Non-Mortise Wrap Around Hinge Sets (4 hinges, screws & magnetic catch with strike plates.)

Item No.

Description

Set

WH-104-AB

Set / Antique Brass

Set of 4

WH-104-BN

Set / Brushed Nickel

Set of 4

WH-104-CH

Set / Chrome

Set of 4

WH-104-OB

Set / Oil Rubbed Bronze

Set of 4

WH-104-PB

Set / Polished Brass

Set of 4

WH-104-WH

Set / White

Set of 4

3. Non-Mortise Butt Hinge (2 hinges & screws only)

Item No.

Description

Set

BH-102-AB

Hinge / Antique Brass

Set of 2

BH-102-BN

Hinge / Brushed Nickel

Set of 2

BH-102-CH

Hinge / Chrome

Set of 2

BH-102-OR

Hinge / Oil Rubbed Bronze

Set of 2

BH-102-PB

Hinge / Polished Brass

Set of 2

BH-102-WH

Hinge / White

Set of 2

BH-102-SSB

Hinge / Stainless Steel Powder Coated Black

Set of 2

4. Non-Mortise Butt Hinge Sets (4 hinges, screws & magnetic catch with strike plates)

Item No.

Description

Set

BH-104-AB

Set / Antique Brass

Set of 4

BH-104-BN

Set / Brushed Nickel

Set of 4

BH-104-CH

Set / Chrome

Set of 4

BH-104-OR

Set / Oil Rubbed Bronze

Set of 4

BH-104-PB

Set / Polished Brass

Set of 4

BH-104-WH

Set / White

Set of 4

5. Magnetic Catches (Magnetic catch with 2 strike plates & screws)

Item No.

Description

Each

MC-101-WH

Magnetic Catch / White

Each

MC-101-BN

Magnetic Catch / Brown

Each

6. Café Door Mounting Kit (4 hinges, screws, magnetic catch with strike plates & knob set)

Item No.

Description

Set

CA-002-PB

Gravity Action Return / Polished Brass

Set of 4

Shutter Track Systems..........Call for quote

Interior Frame Stock (price per Linear Foot)

Hanging Strip

Unprimed Primed

L-Frame Stock

Unprimed Primed

Z-Frame Stock

Unprimed Primed

T-Post Stock

Unprimed Primed

Installation Options

NOTE: Remember to measure and remeasure to verify your numbers before selecting your shutters and the desired mounting procedure.

It is important that various parts of the window construction (casing, moulding, handles, etc.) allow enough space for louver extension when the shutter is closed and louvers are fully open.

INSIDE FRAME MOUNT

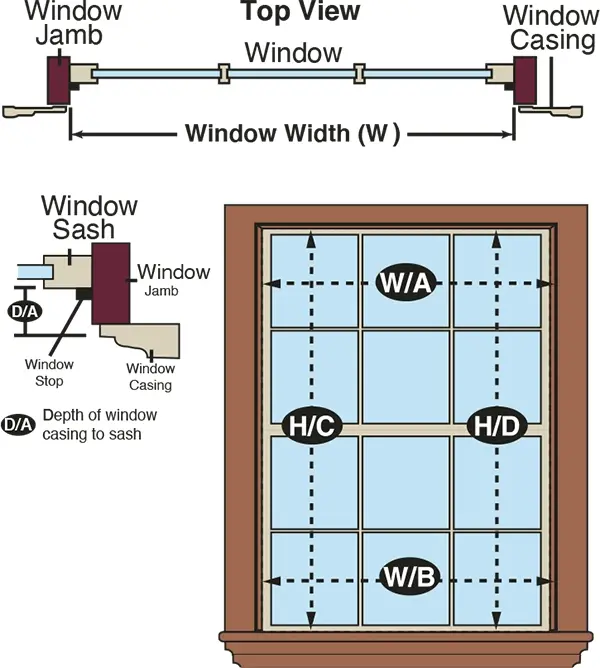

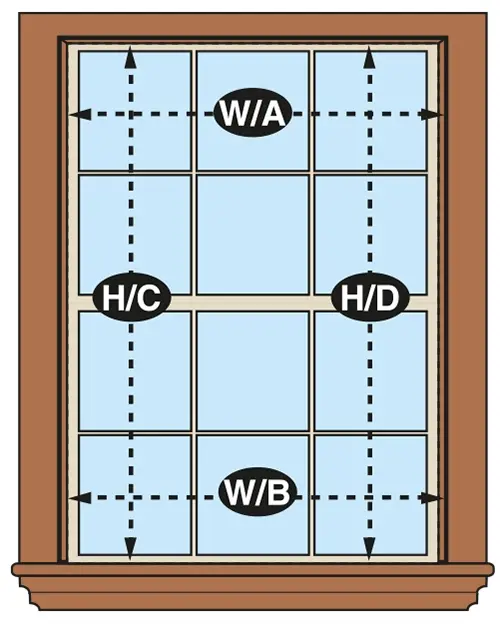

Measure the inside width of the window at both points (W/A and W/B). and the height at both points (H/C and H/D).

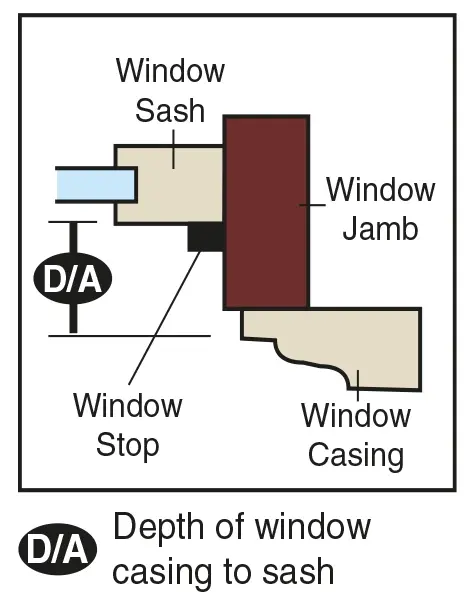

Measure the window depth (D/A), the distance from the window casing to the window sash.
Note: A Deduction of 1/8” for clearance on inside frame hanging systems is recommended by the manufacturer.
For hanging systems with hanging strips or mounting directly window jamb, use the lesser width and height dimension.

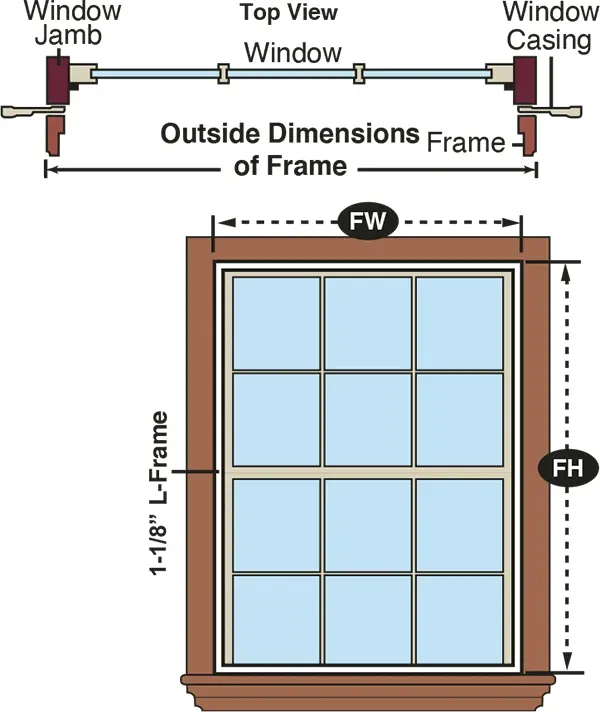

OUTSIDE FRAME MOUNT

Locate area on casing to mount the 1-1/8” frame.

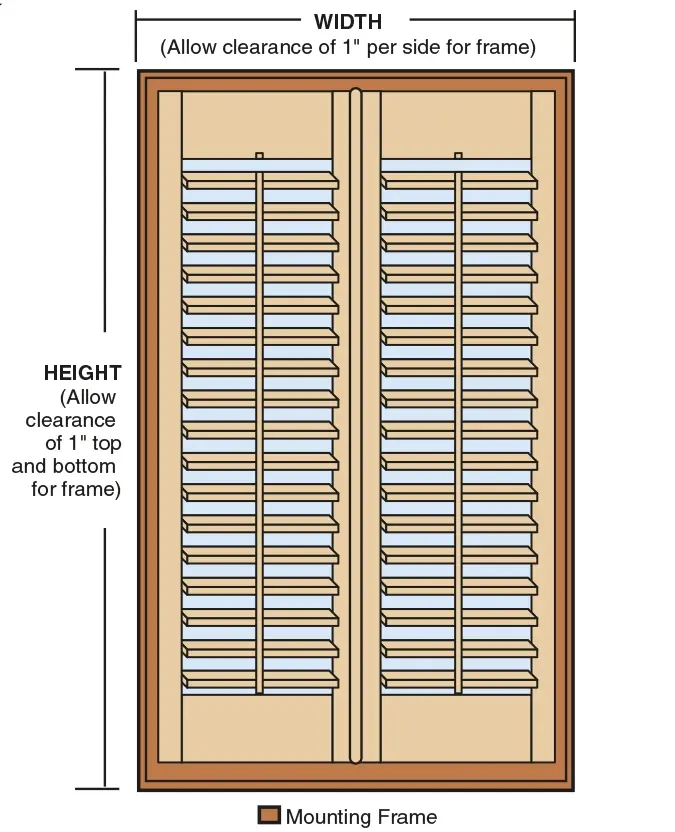

Frame width (FW) is determined by measuring outside frame position left to right, including the 1-1/8” frame footprint.
Frame height (FH) is determined by measuring outside frame position top to bottom, including the 1-1/8” frame footprint.
To ensure flush mount of frame to window casing, frame position should be consistent on all sides of casing.

INSIDE CASING MOUNTS

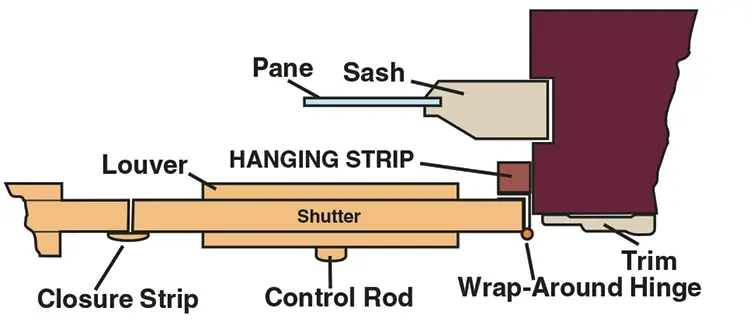

L-Frame Hanging System

2, 3 or 4-sided frame

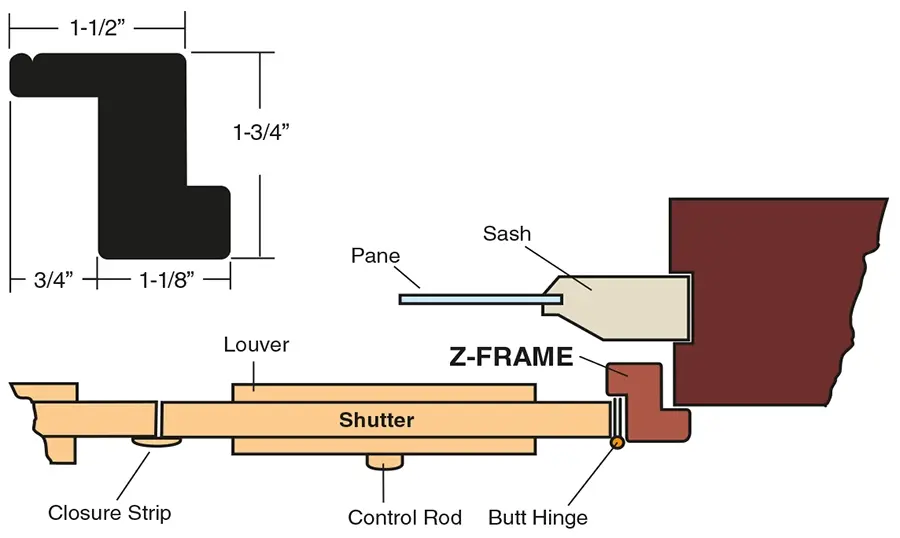

Z-Frame Hanging System

2, 3 or 4-sided frame

Recommended for sheetrock returns

Wrap-Around Hinge & Hanging System

Direct to Casing Mount

OUTSIDE CASING MOUNTS

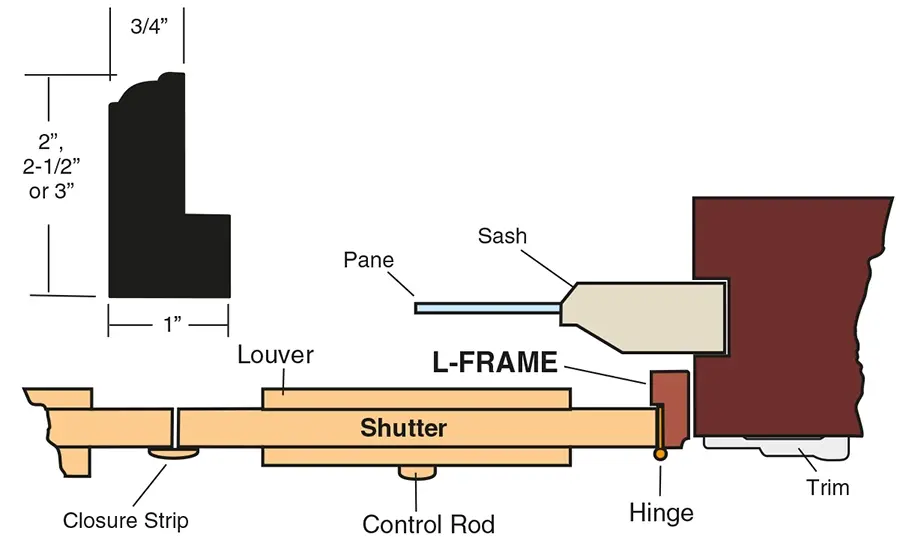

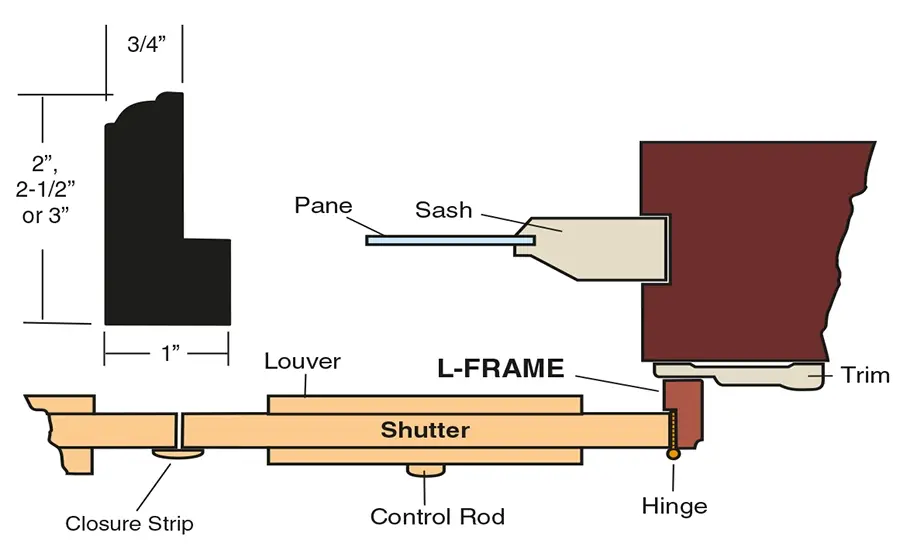

L-Frame Hanging System

2, 3 or 4-sided frame

1-1/16” Movable Louver Shutters

1-1/16”

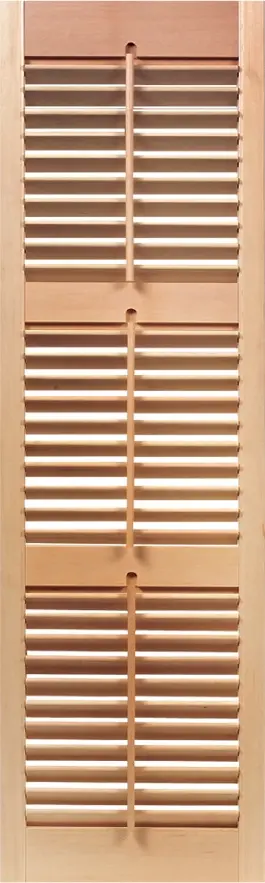

Recessed Stile & Rail Movable Louver Shutter with 1-7/8” Slats and 3 Equal Sections

1-1/16”

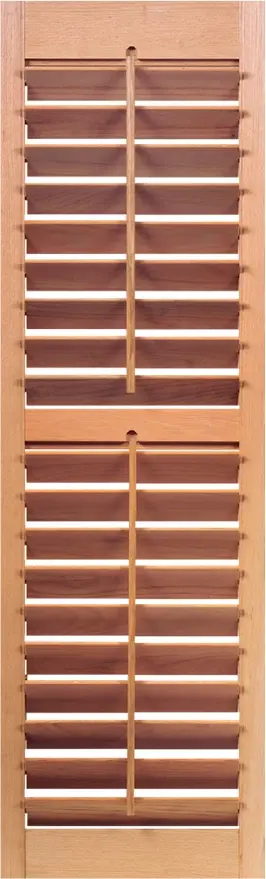

Recessed Stile & Rail Movable Louver Shutter with 2-1/2” Slats and 2 Equal Sections

1-1/16”

Recessed Stile & Rail Movable Louver Shutter with 3-1/2” Slats and 2 Equal Sections

1-1/16”

Recessed Stile & Rail Movable Louver Shutter with 4-1/2” Slats

1-1/16”

Recessed Stile & Rail Louver Shutter with Rail Placement

1-1/16”

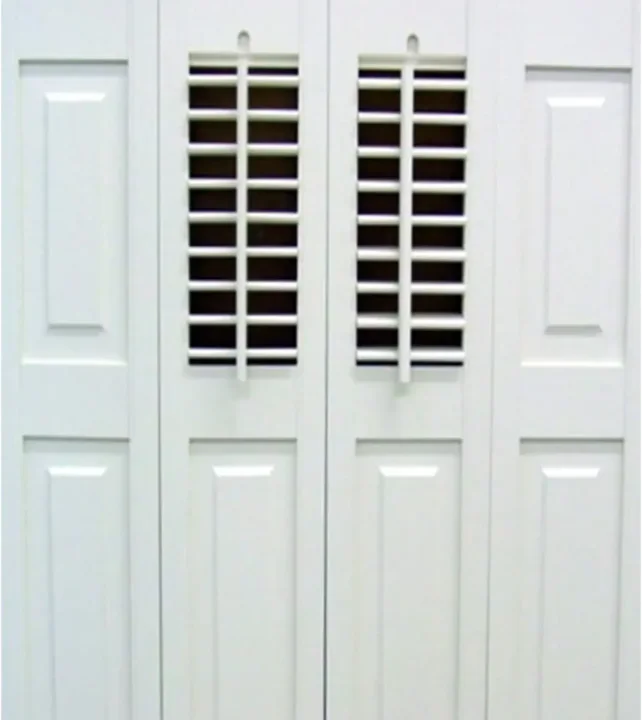

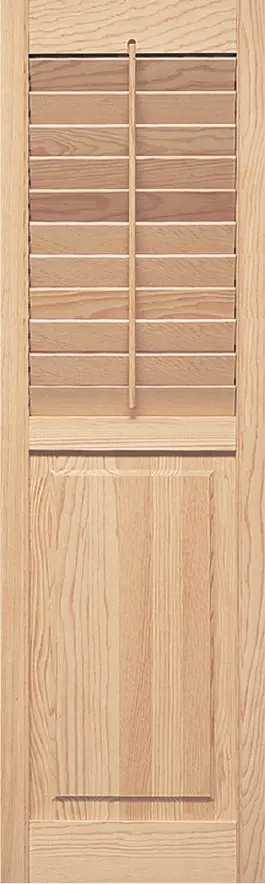

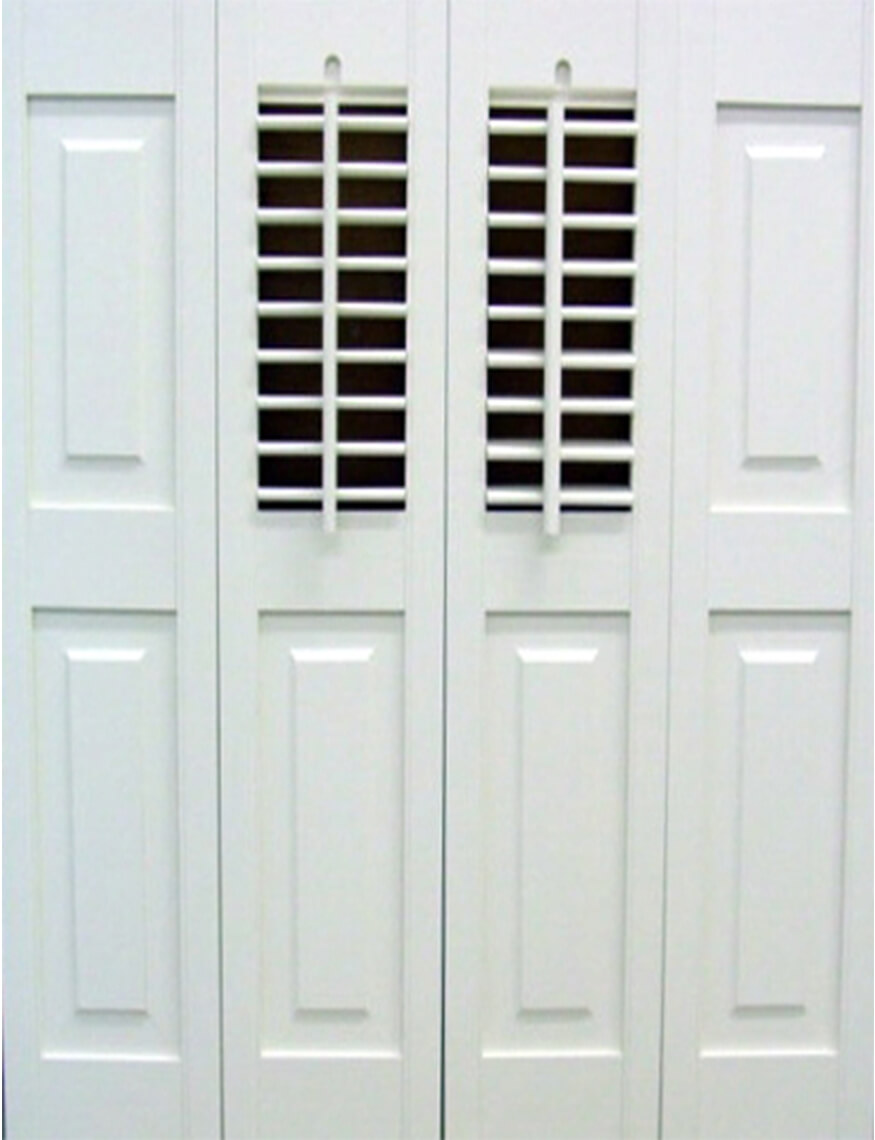

Recessed Stile & Rail Movable Louver Over Raised Panel Combination Shutter with Rail Placement

1-1/16”

Recessed Stile & Rail Movable Louver Over Raised Panel Combination Shutter with 2 Equal Sections

Illustrated below are some suggested options for Interior 1-1/8” Movable Louver Shutters. For additional options call or email for a quote.

2 Sections with Rail Placement

2 Equal Sections with Solid Rail Arch 6” Max Drop

Rail Placement with Small Top and Bottom Sections

2 Equal Sections with Quarter Round Arch Top

Rail Placement with 4 Equal Sections

2 Equal Sections with Café Style Arch Top

2 Equal Sections with Modified Wide Side Stiles

Combination Movable Louver over Raised Panel with 2 Equal Sections

2 Equal Sections with Modified Wide Top and Bottom Rails

2 Equal Sections with Eyebrow Arch Top

2 Equal Sections with Flush Sanded Stiles and Rails

Rail Placement with 3 Sections and Small Transom Top

MEASURING & INSTALLATION GUIDE FOR INTERIOR SHUTTERS

NOTE: Remember to measure to verify your numbers before selecting your shutters and the desired mounting procedure.

Shutters may be mounted inside or outside window casings using hanging strips or frames. In some applications it may be more efficient and simpler to mount your shutters to the window moulding using a framed hanging system. These systems allow for greater flexibility for windows with a shallow depth or that may be out of square. It is important that various parts of the window construction (casing, moulding, handles, etc.) allow enough space for louver extension when the shutter is closed and the louvers are fully open.

WINDOW MEASUREMENTS FOR INSIDE CASING MOUNT

Measure the inside width of the window at both points (W/A and W/B), and the height at both points (H/C and H/D).
Measure the window depth (D/A), the distance from the window casing to the windowsash.
Note: A deduction of 1/8” for clearance on inside frame hanging systems is recommended by the manufacturer.
For hanging systems with hanging strips or mounting directlywindow jamb, use the lesser width and height dimension.

WINDOW MEASUREMENTS FOR OUTSIDE FRAME MOUNT

Locate area on casing to mount the 1 inch frame.
Frame width (FW) is determined by measuring outside frame position left to right, including the 11/8” frame footprint.
Frame height (FH) is determined by measuring outside frame position top to bottom, including the 11/8” frame footprint.
To ensure flush mount of frame to window casing, frame position should be consistant on all sides ofcasing.

Installing Interior Shutters

Inside or Outside Mount

Most Hanging Systems may be used as inside mounts or outside mounts. Factors such as squareness of the windowopening, tilt window functions, obstructions and appearance should contribute to this decision. Note: Deduction of 1/8” for clearance on inside frame hanging systems is recommended bymanufacturer.

MEASURING & INSTALLATION GUIDE FOR INTERIOR SHUTTERS

OUTSIDE CASING MOUNTS

L-FRAME HANGING SYSTEM (3 or 4-sided frame)

INSIDE CASING MOUNTS

L-FRAME HANGING SYSTEM (3 or 4-sided frame)

Hardware
Ready-to-insall shutters are shipped with all the neccessary hardware in your choice of finishes, including Antique Brass, Brushed Nickel, Chrome, Oil Rubbed Bronze, Polished Brass, White and Black.

INSIDE CASING MOUNTS

Z-FRAME HANGING SYSTEM (3 or 4-sided frame)

Recommended for sheetrock returns

DIRECT TO CASING MOUNT

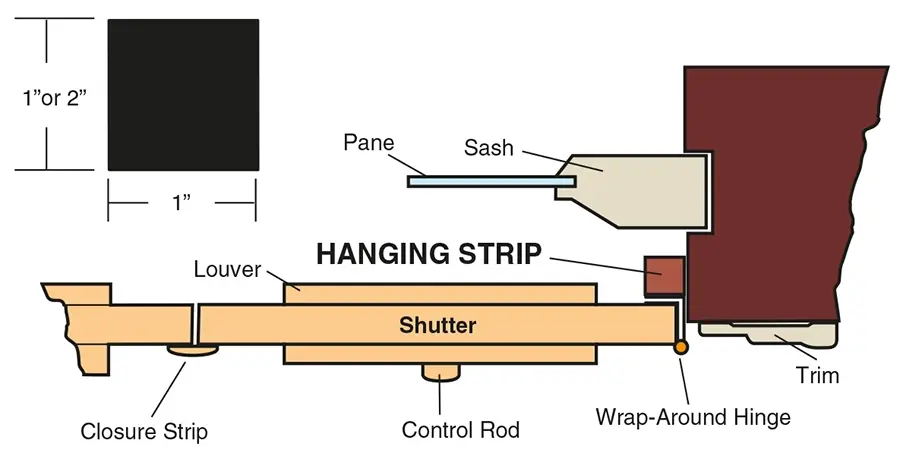

WRAP-AROUND HINGE & HANGING STRIP SYSTEM

MEASURING & INSTALLATION GUIDE FOR INTERIOR SHUTTERS

Hanging Systems

Direct to Casing
Wrap-around Hanging Strips inside or outside.
3-Sided Frames Inside or Outside (L or Z Frame)
4-Sided Frames Inside or Outside (L or Z Frame)
Track Systems, in bi-fold or by-pass configurations.

Hanging Strip

L-Frame

Z-Frame

T-Post

Panel Layout

Let the window guide your layout. Each characterin the design layout code represents one shutter panel and its hinge direction. A dash is used to indicate a T-Post or mullion.
